RIGOR HD96

BUILT FOR PERFORMANCE.
MADE TO WIN.

Download Brochure Get A Quote

✓ High Performance 96HP Engine

✓ Higher Fuel Efficiency

✓ Strongest Loader in its Class

✓ Comfort & Safety Assured

THE WORLD'S BEST COMPONENTS

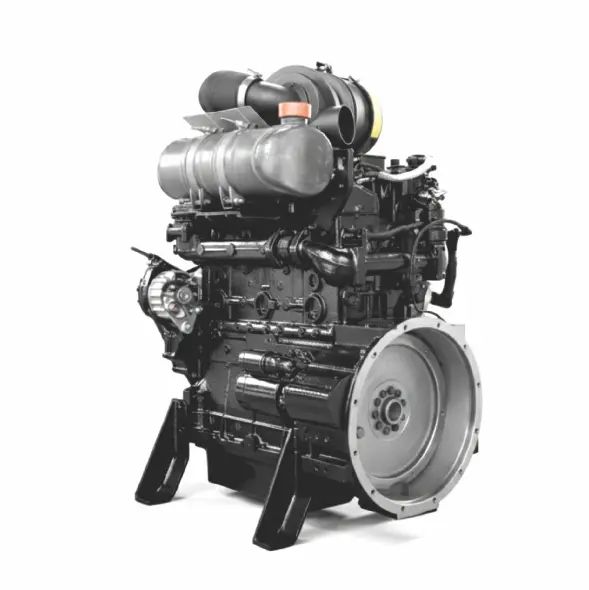

KIRLOSKAR 96 HP

Powered by a world-class engine, this backhoe loader delivers strong performance with outstanding fuel efficiency. Built for demanding jobs, it ensures reliable power, smooth operation, and maximum productivity in every task.

Parker Piston Pump
(USA)

Carlisle Brake
(USA)

76 / 96 HP Carraro (Italy) Transmission
100 HP ZF (German) Transmission

AKG Radiator Cooler
(Germany)

Hydro Control Valve / Walvoil (Italy)
Globally renowned brand

Carraro Axle
(Italy)

EXTRAORDINARY RELIABILITY

3X LONGER LIFE

World Class
Powder Coating Plant

3X PIN & BUSHES LIFE

HEAVY DUTY STEEL KING POST

RIGOR

OTHERS
CASTING

WORLD CLASS CABIN COMFORT

AIR CONDITIONING

6 DIRECTION AIRFLOW

Six-directional airflow provides uniform cooling and all-day operator comfort, even in the toughest environments.

ROPS & FOPS CABIN

AS STANDARD

TILTABLE STEERING

AIR CUSHIONING COMFORTABLE SEAT

FORWARD REVERSE SWITCH

ADVANCED PILOT JOYSTICK
6 FUNCTIONAL

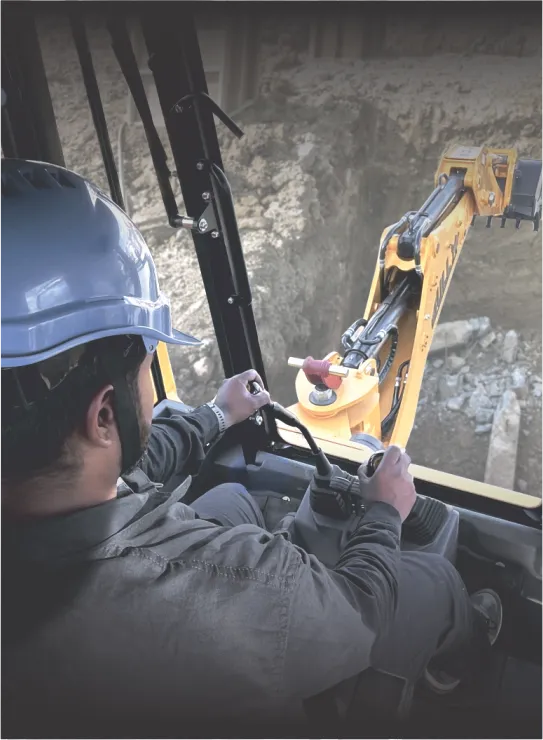

BETTER VISIBILITY

AVAILABLE ATTACHMENTS

6 IN 1 BUCKET

BOOSTER BUCKET

LOG FORK

CONCRETE MIXER

PALLET FORK

GRABBING FORK

ROCK BREAKER

SUGARCANE LOADER

BALE GRABBER

READY TO BUY?

Get a quick quote or request a demo from our product expert.

Get A Quote

TECHNICAL INFORMATION

Dimensions

Dump Height: 2.74 m (9 ft)

Load Over Height: 3.23 m (10 ft 7 in)

Pin Height: 3.45 m (11 ft 4 in)

Max Reach at Full Height: 0.81 m (2 ft 8 in)

Reach at Ground: 1.42 m (4 ft 8 in)

Dig Depth: 0.10 m (4 in)

Specification

Backhoe Bucket Capacity: 0.24 m³

Loader Bucket Capacity: 1.0 m³

Maximum Dig Depth: 4.70 m

Maximum Loader Dump Height: 2.74 m

Engine

Engine Model: Kirloskar 4R1040T, Non Emission Diesel Engine (4160 CC)

Gross Power: 70.6 kW (96HP) @ 2200 RPM

Gross Torque: 377 Nm @ 1400 RPM

Transmission

Type: CARRARO Synchro - Shuttle Transmission with integral torque converter

Axles

Front Axle: Heavy-duty CARRARO 4WD steer axle with oscillation

Rear Axle: Heavy-duty CARRARO drive axle with outboard planetary reduction

Brakes

Service Brakes: Hydraulically actuated, dual-pedal, oil-immersed multi-disc brakes

Parking Brake: Hand-operated mechanical caliper disc brake on transmission output shaft

Steering

Power steering as standard for effortless control and precise maneuverability.

Electricals

System: 12V Battery Systems (180Ah)

Tyres

Front Tyres: 2WD - 9.00X16 - 16PR / 4WD - 12.5/80X18 - 12PR

Rear Tyres: Industrial (Standard): 16.9X28 - 12PR | Optional: 19.5LX24 - 12PR | Heavy Duty: 14X25 - 20PR

Turning Circle

Inner turning radius: 3.4 m

Outer turning radius (with brakes): 4.1 m

Outer turning radius (without brakes): 4.8 m

Speed

Forward Max Speed: 40 Km/Hr

Reverse Max Speed: 20.3 Km/Hr (3rd Gear Recommended)

Hydraulics

System Pressure: 3335 p.s.i (230 bar)

Pump Flow: 145 LPM @ 2200 RPM (158 LPM @ high RPM)

Pump Type: Gear Pump

Weight

Operating Weight: 8150 Kgs with Standard GP Bucket option

Service Capacities

System Component	System Capacity	Service Capacity
Hydraulic Tank	120 Ltr	100 Ltr
Fuel Tank	150 Ltr	145 Ltr
Engine Coolant	17 Ltr	15 Ltr
Engine Oil	13 Ltr	13 Ltr
Transmission	19.5 Ltr	13 Ltr
Rear Axle	17 Ltr	17 Ltr
4WD Front Axle	10 Ltr	10 Ltr

Cab

Safety Standard: ROPS/FOPS certified spacious cabin

Features: Ergonomic controls, multi-information display panel, suspension seat, curved windshield for wide field of vision

Options
