RIGOR AV490

COMPACT BUT POWERFUL.

Download Brochure Get A Quote

✓ High Performance Kubota 49.5HP Engine

✓ Higher Fuel Efficiency

✓ Strongest Loader in its Class

✓ Comfort & Safety Assured

THE WORLD'S BEST COMPONENTS

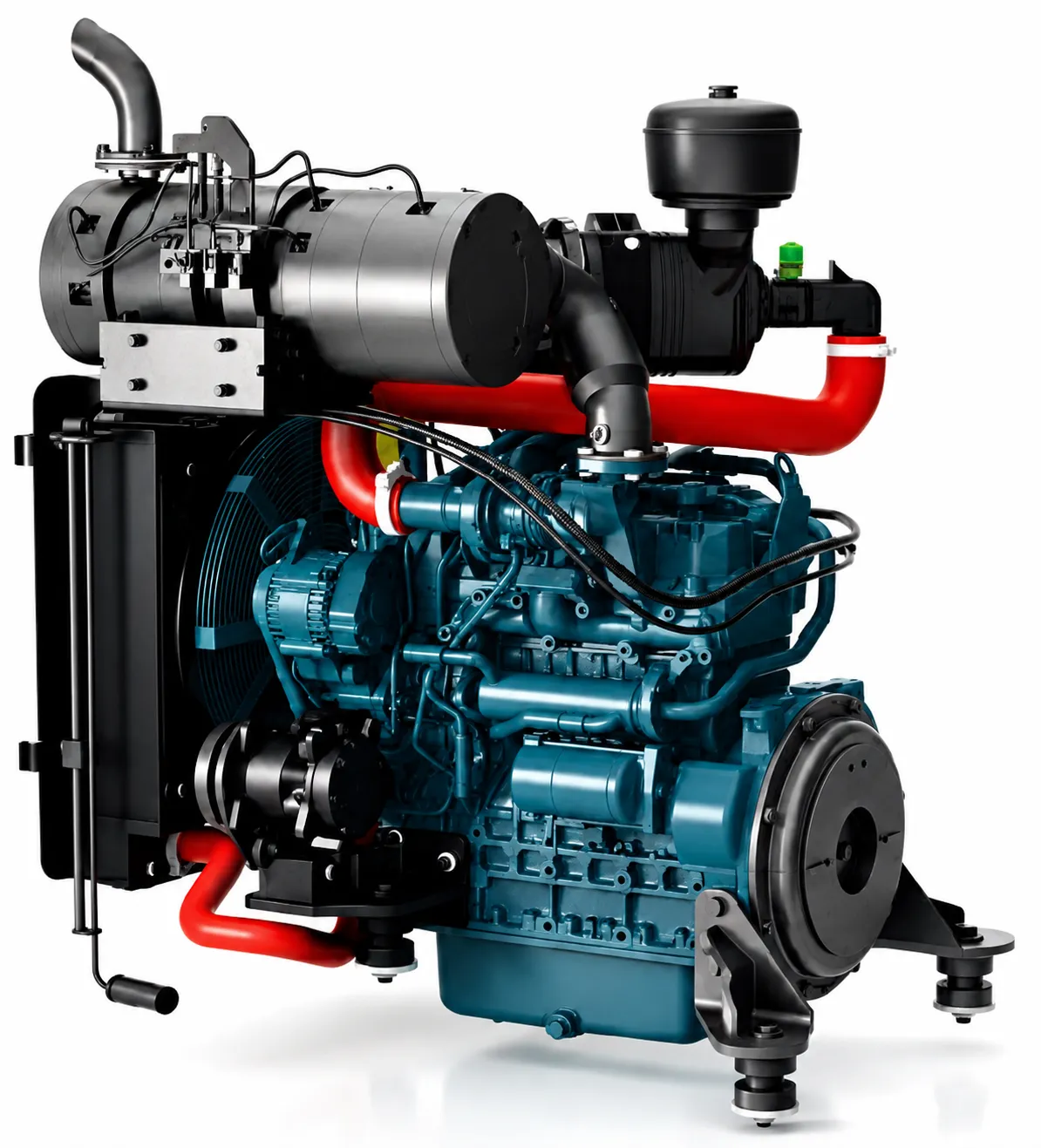

ALL NEW

KUBOTA
EURO 3 ENGINE

Fan for Radiator and cooler are directly mounted on Engine which improves efficiency.
It saves power resulting in lower fuel consumption.

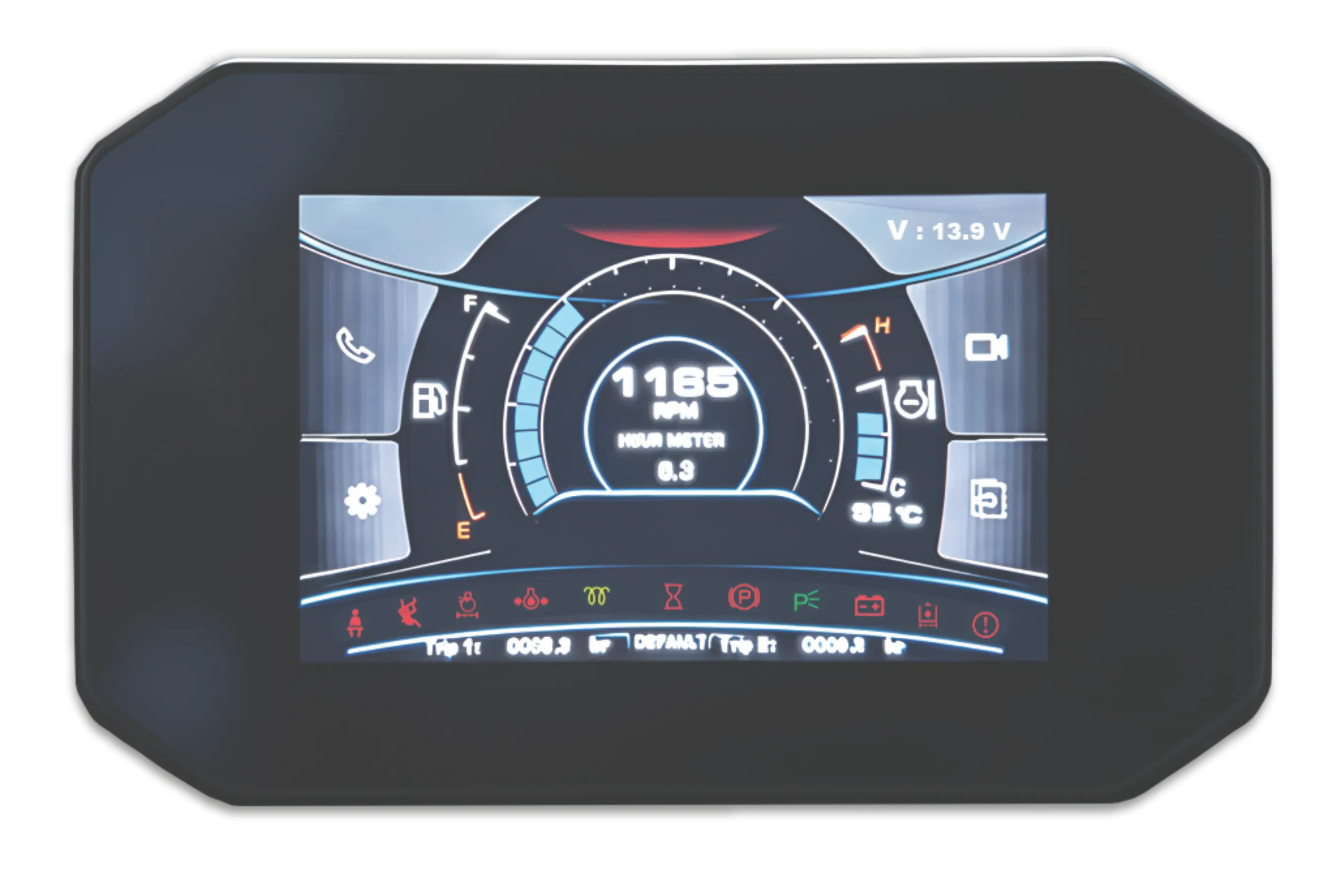

ALL NEW

TFT TOUCH SCREEN

High-Visibility TFT Touch Screen: Provides all necessary machine information and is designed for easy usability, even with work gloves or oily hands.

Day / Night Mode
Auto Brightness
Integrated rear view camera display

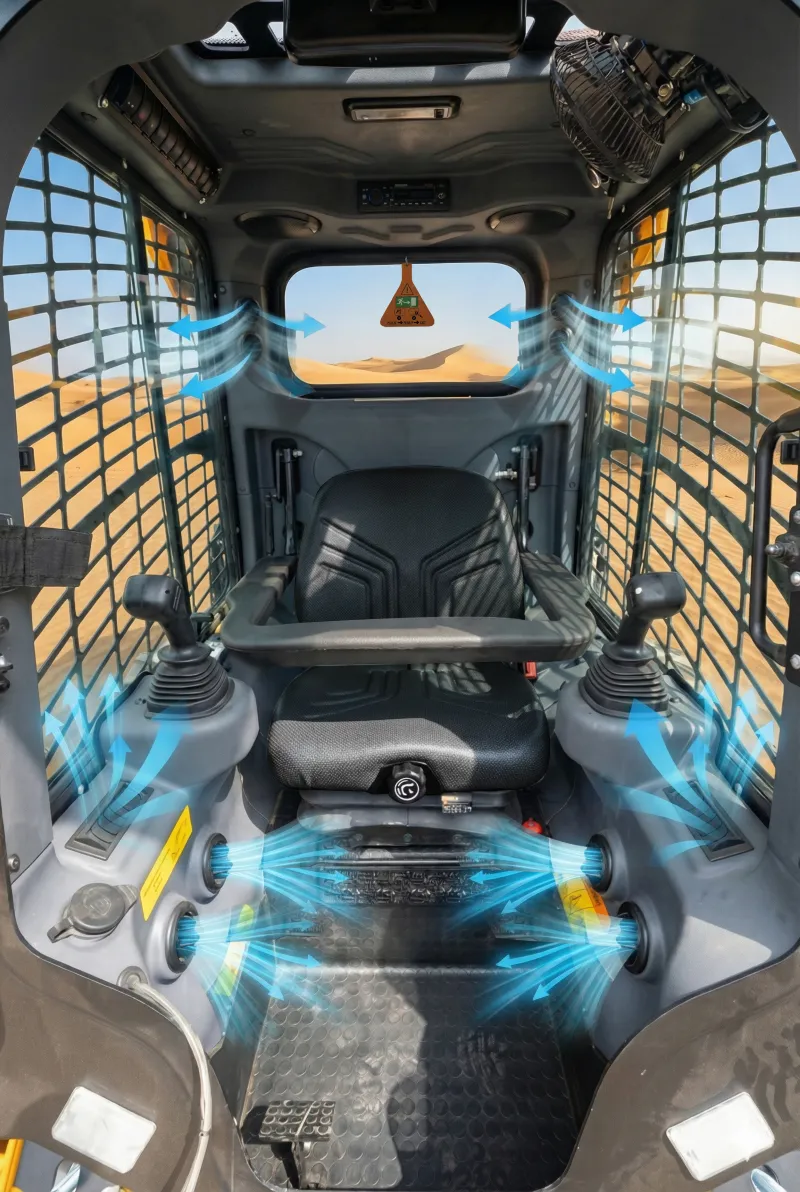

WORLD CLASS CABIN COMFORT

AIR CONDITIONING

6 DIRECTION AIRFLOW

Six-directional airflow provides uniform cooling and all-day operator comfort, even in the toughest environments.

ROPS & FOPS CABIN

AS STANDARD FOR YOUR SAFETY

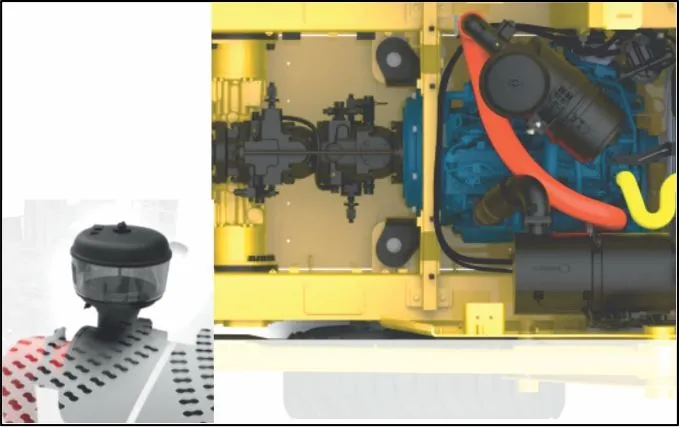

EASY

SERVICEABILITY

Pump is directly coupled to engine via reliable flexible coupling.
Maintenance & Trouble free operation.
Pre Cleaner provided for dusty environment.

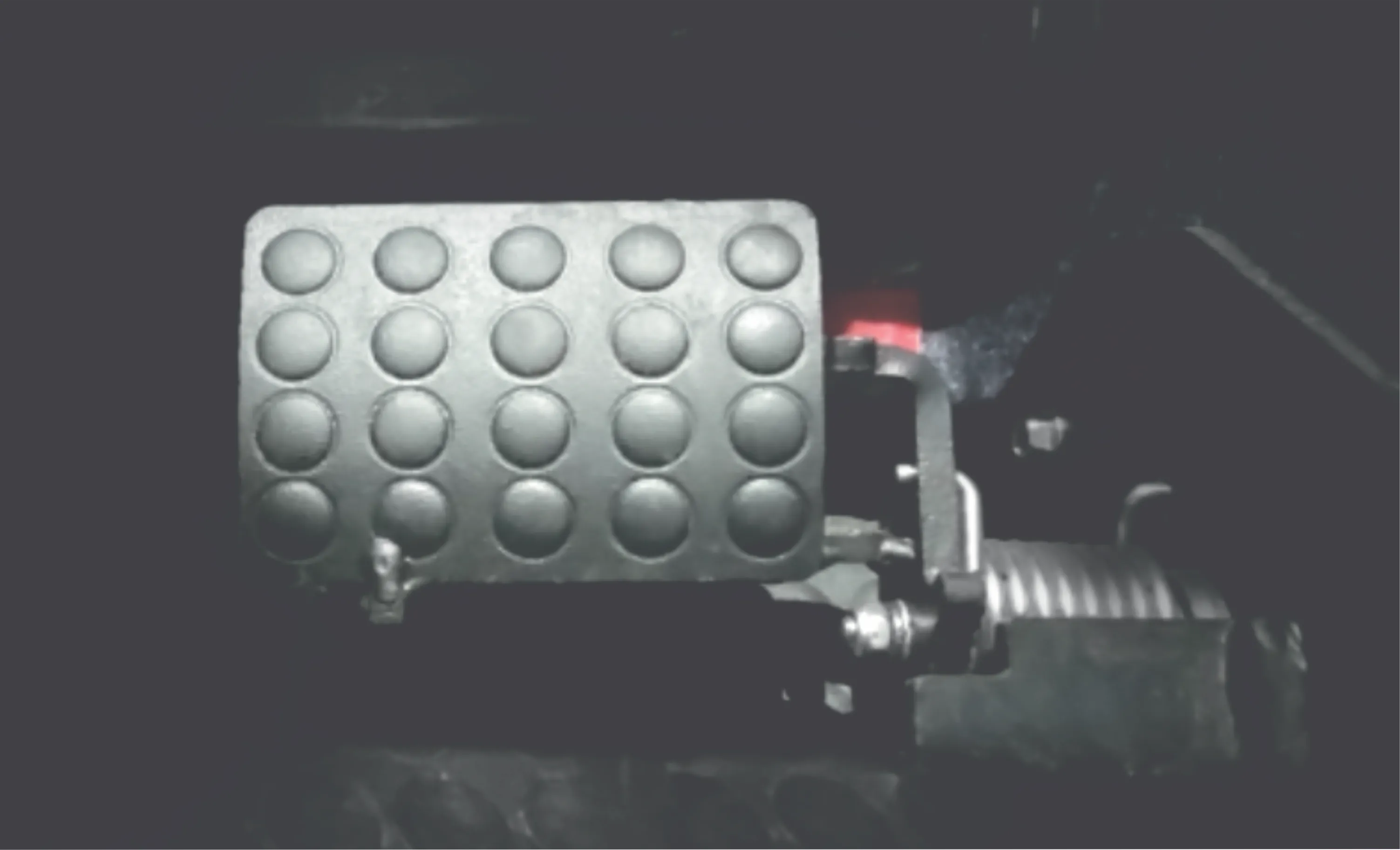

ADDITIONAL

FOOT ACCELERATOR

to maintain the optimal speed

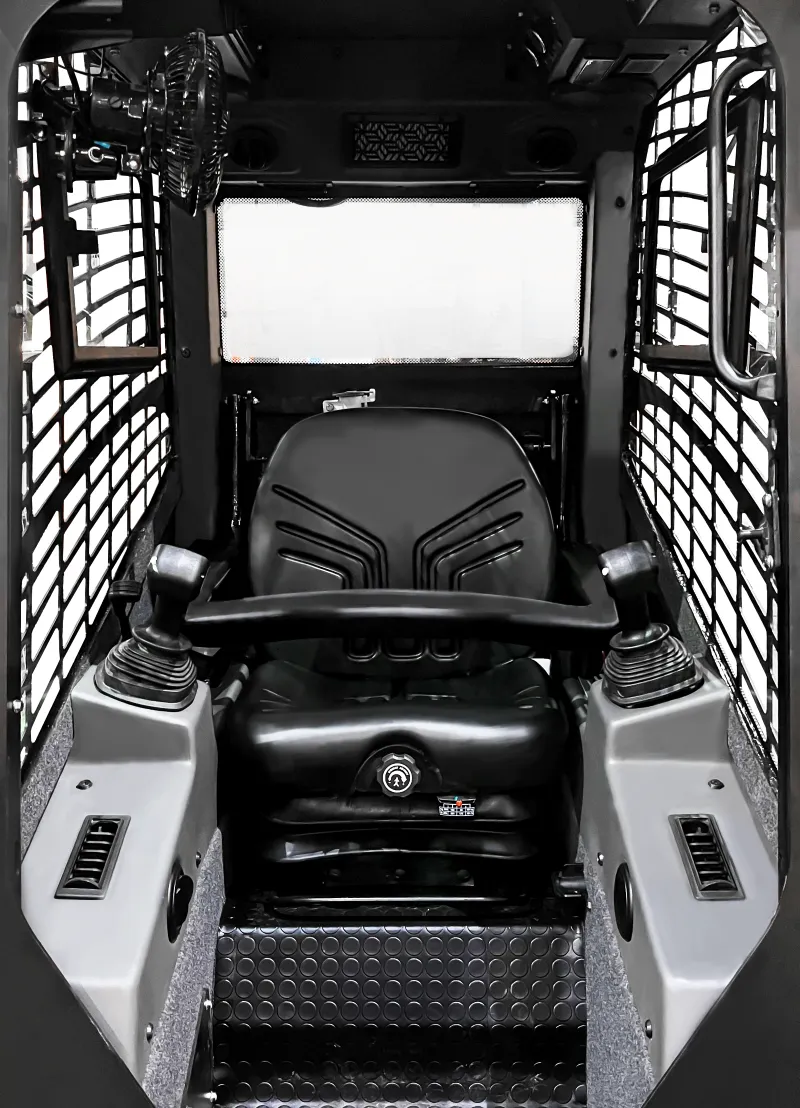

BEST IN CLASS

CABIN

Safety Lock: Safety bar automatically locks hydraulics and engages the parking brake.
Comfort Standard Suspension Seat ensures enhanced operator comfort for long hours.

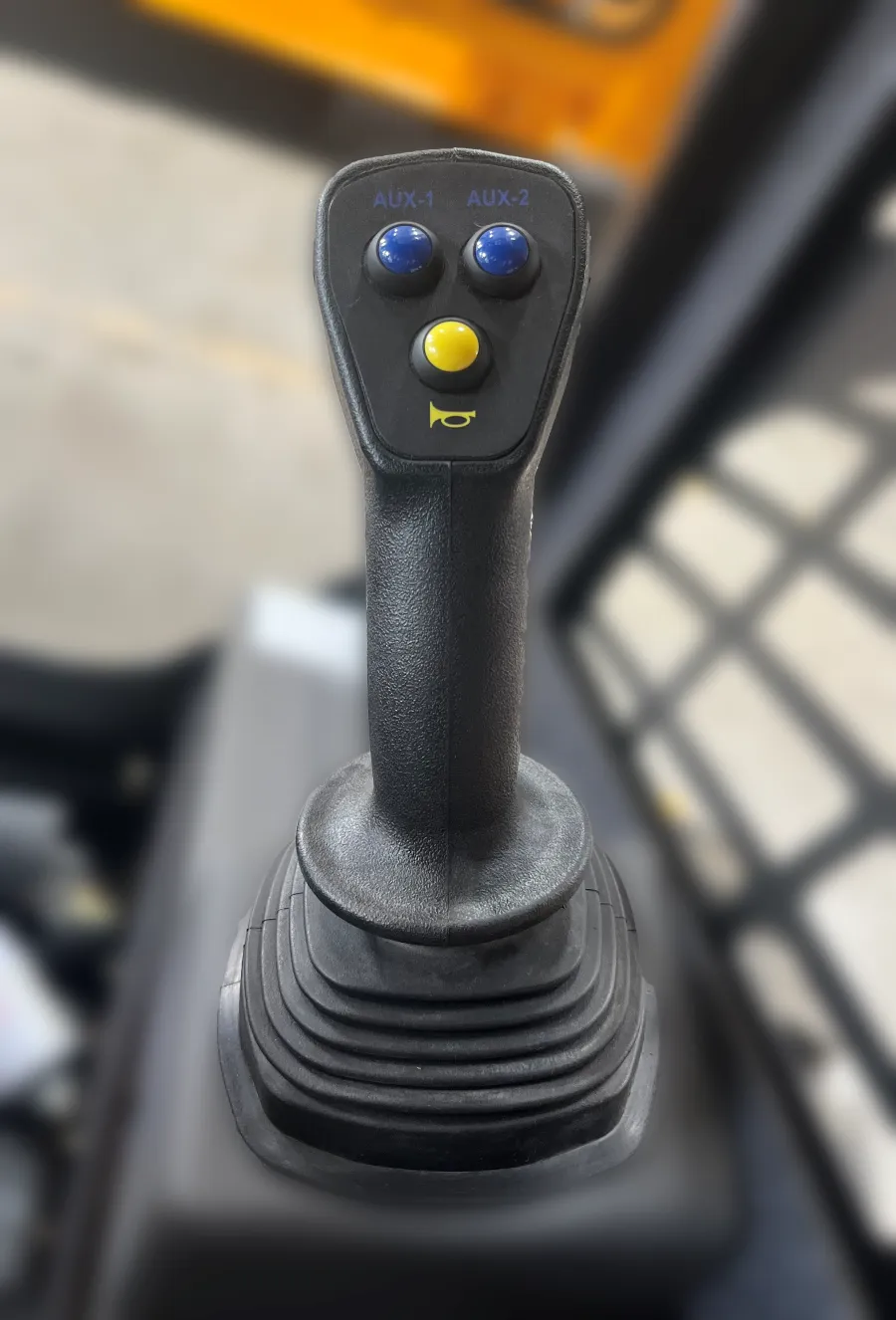

PILOT OPERATED

JOYSTICK

Provides easy, precise control, reducing operator effort and fatigue.

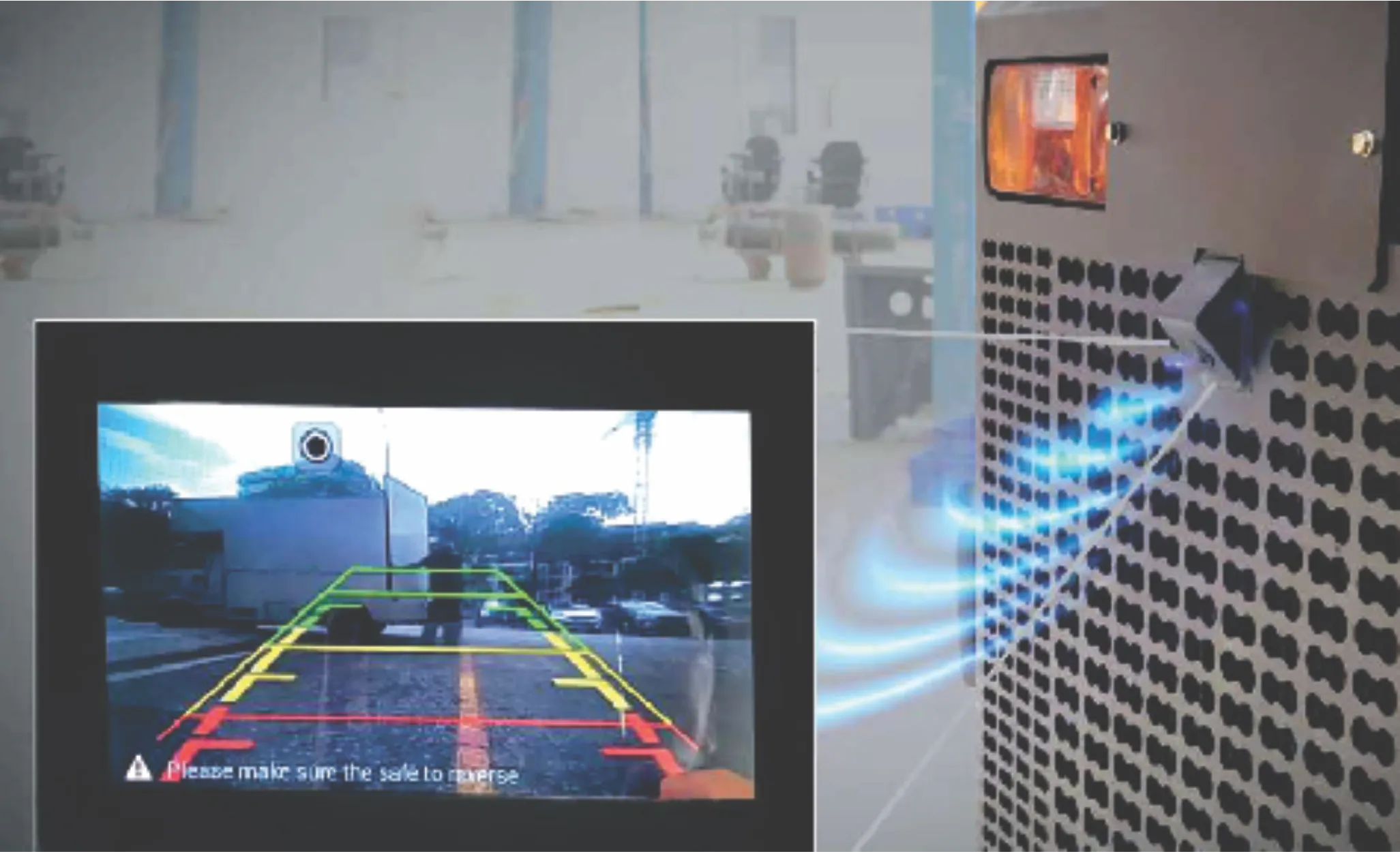

REVERSE

CAMERA

Provides a clear, wide-angle view for safer, blind-spot-free reversing.

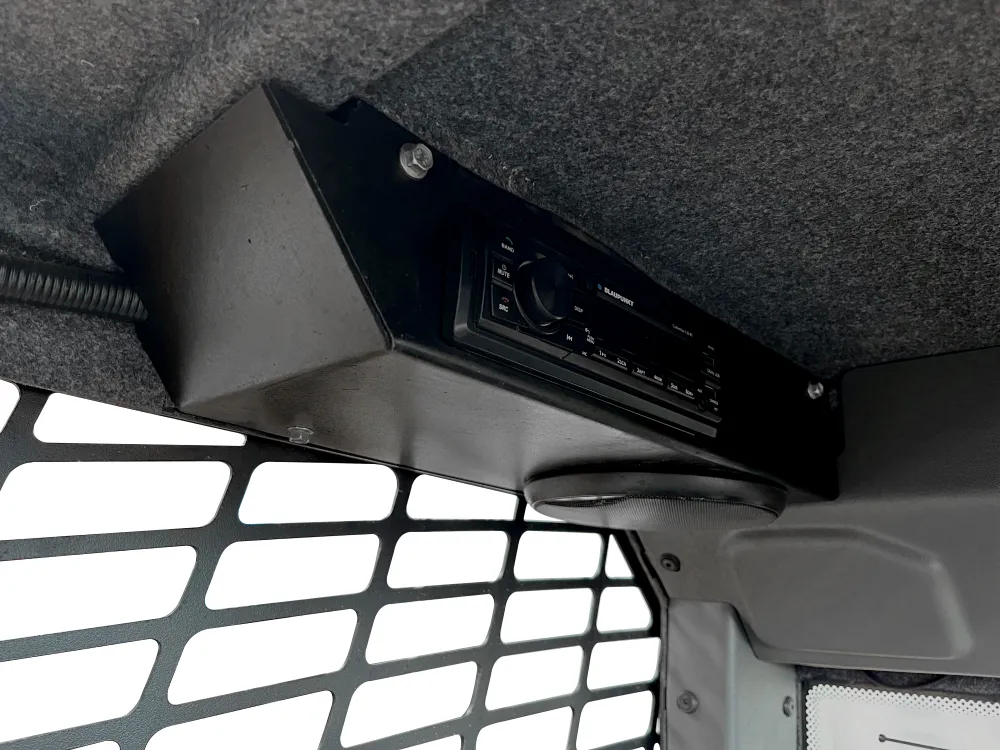

Music player

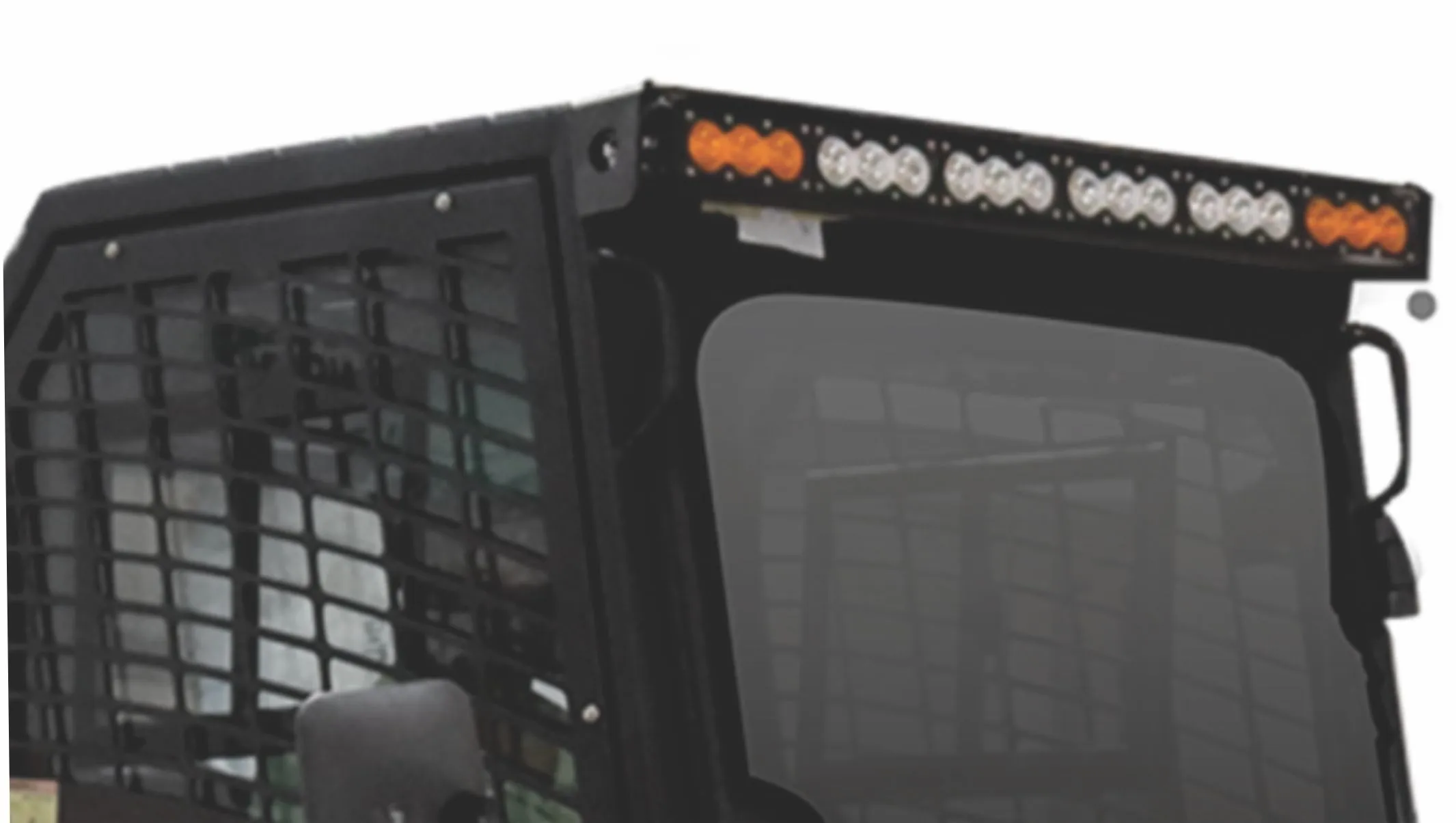

Inbuilt LED light

BUILT TO DO MORE

EXPLORE THE MACHINE

MACHINE RATING +

Rated Operating Capacity	655 Kg
Tipping Load	1310 Kg
Hydraulic Standard Flow	57.0 Lpm
Hydraulic High Flow (Opt)	82.0 Lpm
System Relief Pressure	23.0 Mpa
Max Travel Speed	12 Km/hr

ENGINE +

Model	KUBOTA EURO 3 ENGINE
Fuel Type	Diesel
Cooling	Liquid
Max. Power @ 2200 rpm	36.5 kW (49.5 HP)
Max. Torque @ 1500 rpm	158.6 Nm
No. of Cylinders	4

ELECTRICAL +

Battery	12 V
Alternator	90 Amps

DRIVE SYSTEM +

Transmission	Hydrostatic drive with hydraulic pilot operated variable displacement tandem pump with heavy duty radial piston bidirectional motor
Type of Drive	4WD – Chain Drive

CONTROL +

Vehicle Steering	Skid steering, controlled by a left-hand side single joystick
Loader Hydraulic Tilt and Lift	Single joystick on right-hand side
Front Auxiliary (std)	Electrical switch on right-handside joystick

WEIGHT +

Operating Weight

3000 Kg

TYRE +

10X16.5–10 PR, 12X16.5–10 PR (optional) Heavy/ Medium Duty, Solid Tyre

OPTIONAL +

Self Leveling Valve, Anti-stalling Feature, AC Cabin, Aux. Hydraulics High Flow, ROPS-FOPS-Level 1 Certified Cabin

CAPACITY +

Fuel	48 L
Engine Oil	9.5 L
Coolant	8.5 L
Hydraulic System (including Tank)	65 L
LH Chain Case	10 L
RH Chain Case	10 L
